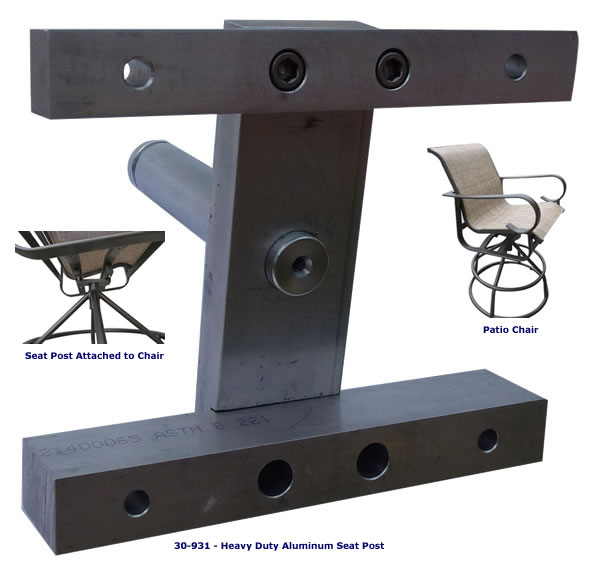

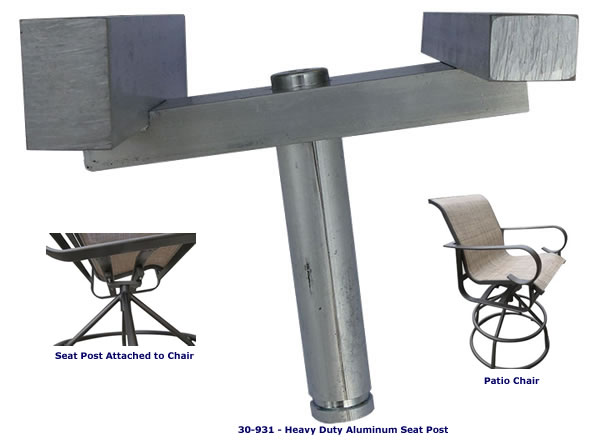

Angled (7.5°) Heavy Duty Aluminum Swivel Seat Post

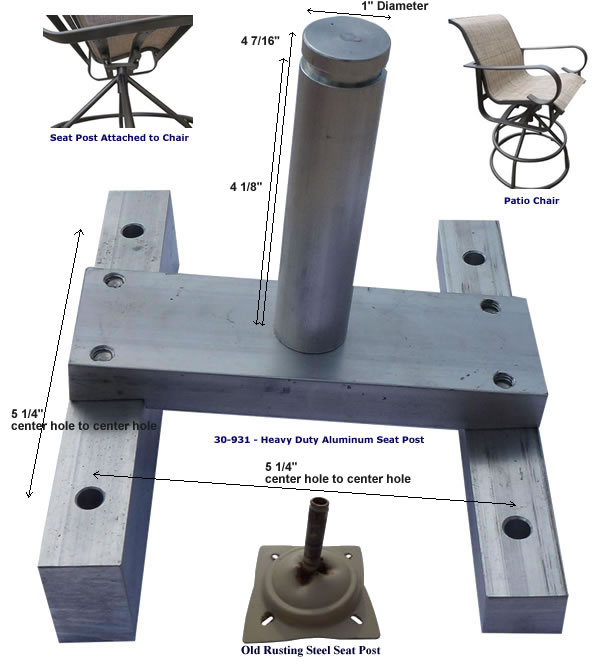

Dimensions
5 1/4″ hole to hole.
1″ diameter seat post.
Replaces old rusting steel seat post.
The old part would collect water and cause it to rust out. Our new part is aluminum and does not collect water. You can paint or powder coat them to match frame of furniture.

Does not include bolts
Recommend 1/4″ Stainless Steel hex head bolts and lock nuts. Bolt length will depend on width of the seat frame. If holes do not match perfectly, you may have to center and re-drill seat bar holes to match holes on new part.

• – Angled (7.5°) Heavy Duty Aluminum Swivel Seat Post
• – 5 1/4″ center hole to center hole
• – 1″ diameter seat post
• – Replaces old rusting steel seat post
• – Our new part is aluminum and does not rust. You can paint or powder coat them to match frame of furniture
• – Seat Posts fits into 30-928, 30-927 and 30-922 Swivel Chair Seat Post Bushings which fit different size diameter base tube
• – Seat Post does not include rocker springs, rectangular washer plates, nuts & bolts, and plastic seat post bushings
• – Old assembly parts can be reused
• – Recommend 1/4″ Stainless Steel hex head bolts and Esna lock nuts. Holes need to be drilled in the rocker spring in order to attach the rocker spring to part #30-933 and to attach to the seat. To connect to seat frame, bolt length will depend on width of the seat frame (a 2″ bolt is required in order to attach to the seat post). Bushing size will depend on the inside diameter (I.D.) of the base pole. If holes do not match perfectly, you may have to center and re-drill seat bar holes to match holes on new part
